Test CAN-Bus network or device Electrical system communication testOne-channel CAN Analyzer Automotive electronics development


SKU: 1005004859612715 Category:


  • Plug Type: EU plug
  • Color: Black
  • Package: Yes
  • Model Number: USBCAN-I pro
  • Type: Industrial Computer Accessories
  • Brand Name: GCAN
  • Origin: Mainland China
  • Certification: CE

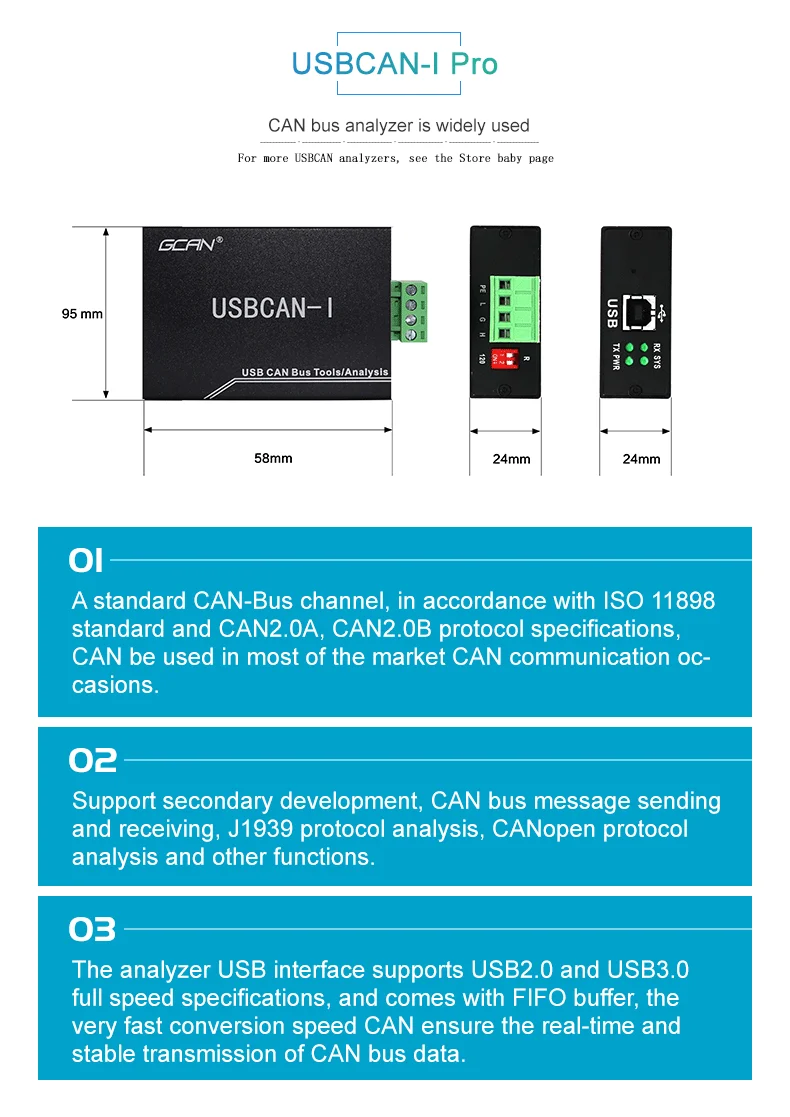

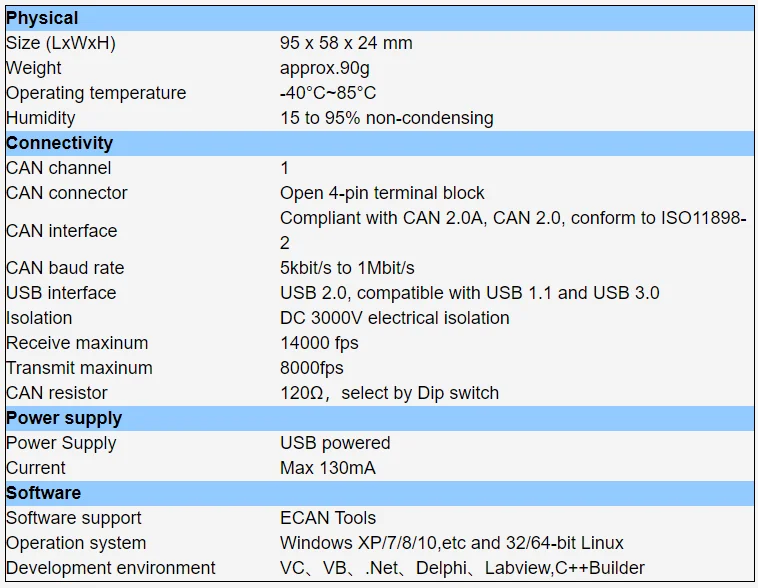

  • Size (LxWxH): 95 x 58 x 24 mm
  • Weight: Approx.90g
  • Working temperature: -40~ 85℃
  • Humidity: 15 to 95%non-condensing
  • CAN channel: 1
  • CAN connector: Open 4-pin terminal block
  • Computer interface: USB1.1, USB2.0, USB3.0
  • Baud rate: 5Kbps~1Mbps
  • USB interface: USB 2.0, compatible with USB 1.1 and USB 3.0
  • Electric isolation, insulation level: DC3000V
  • Receive maximum data flow: 14000 FPS
  • Transmit maxinum: 8000fps
  • Power Supply: USB powered
  • Current: Max 130mA
  • Support secondary development: yes
  • Electrical isolation protection module: Integrated
  • Operating system: Windows XP, 7, 8, 10, etc
  • OEM: Support
  • Software support: ECAN Tools


Baud rate automatic recognition function
1.CAN Bus monitoring function
2.Automotive electronics development
3.Application of vehicle networking

Product description

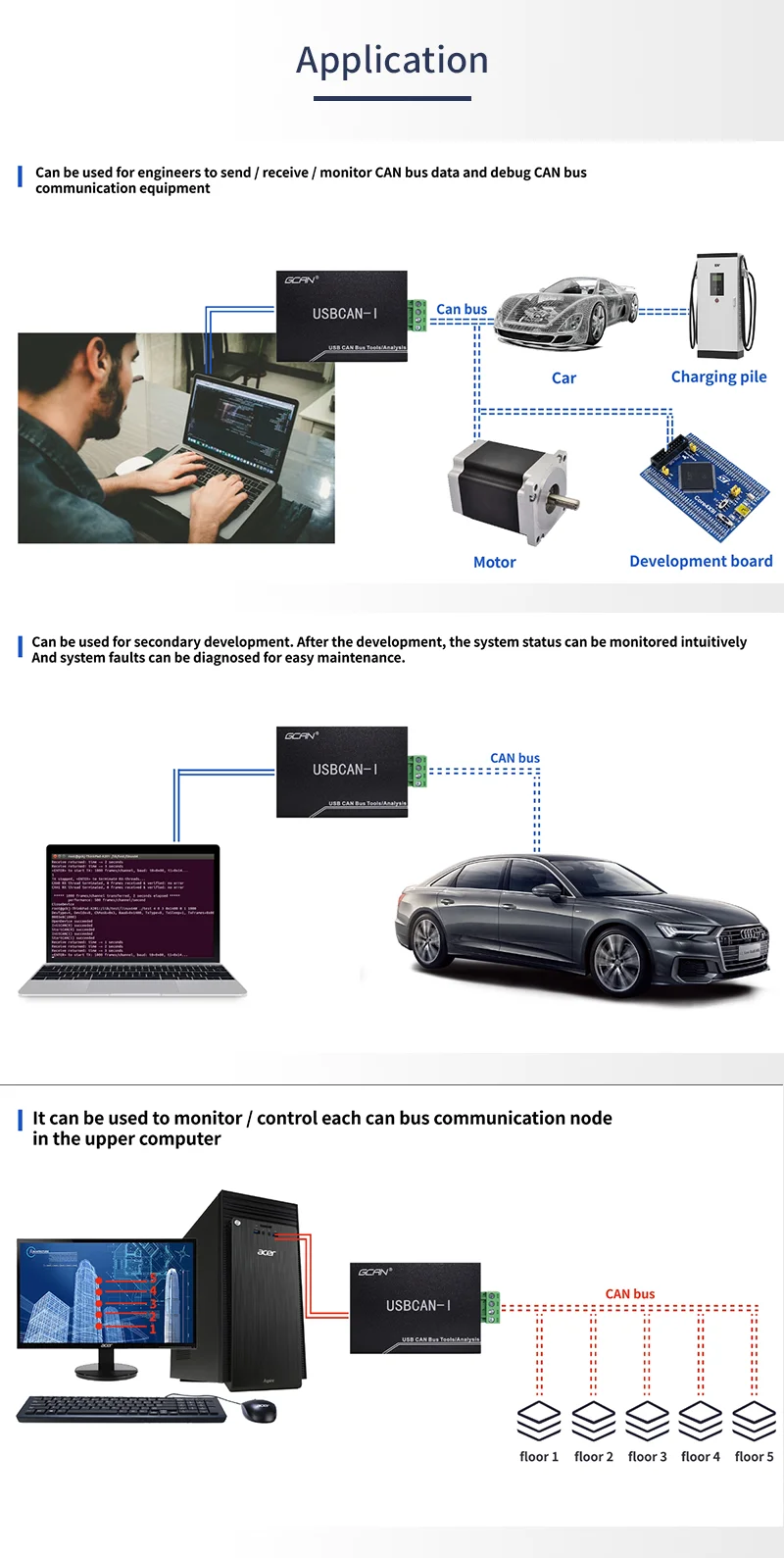

USBCAN-I pro adapter is a analysis tool for CAN bus which can build connection between PC and CAN network. It can make CAN data visibility with ECANtools software and realize CAN data transmit/receive and other functions. If user want to develop application program, GCAN provides the application demo code, including VC, VB,.net, Delphi, Labview and C++Builder and other development routine.

Product Parameters

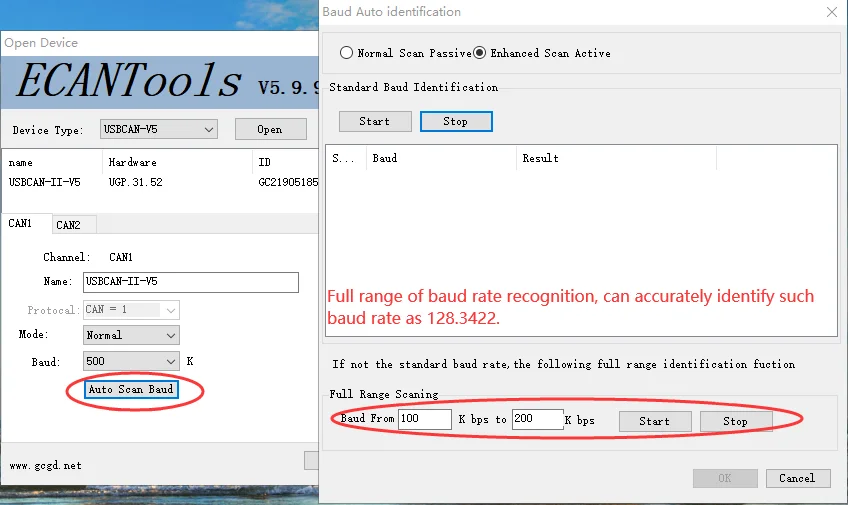

1.Automatic baud rate recognition function

It can automatically identify the baud rate of a bus with an unknown baud rate. As long as it is an active CAN bus, our company’s equipment can identify its baud rate. There are two ways to identify the baud rate:
A: Standard baud rate recognition.(1000K, 500K, 250K…)
B: Full range of baud rate recognition.(set the start and end range, scan the baud rate in the range)
This function can send and receive data after identifying devices with unknown baud rate, and can also be used to test the baud rate of newly developed CAN communication devices.

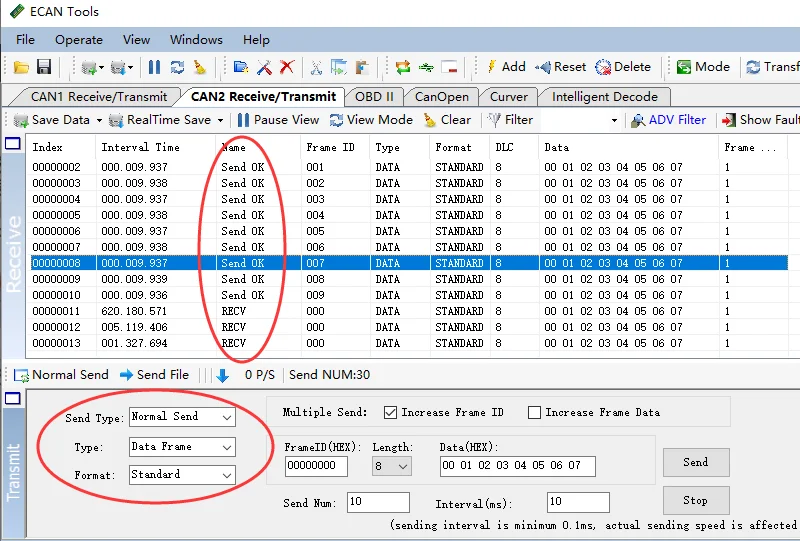

2.Basic CAN data transceiver function

The software can send and receive CAN bus standard data, support CAN2.0A, CAN2.0B frame format sending and receiving, support data frame, remote frame sending and receiving. The software receiving list can receive up to 1 million frames of data, and the receiving list can be saved locally in 3 formats-text file (.TXT), batch file (.CAN), excel file (.csv), this function is convenient The user performs data storage and processing analysis, and the batch file can be sent back to the CAN bus through software.

3.Advanced CAN bus data transmission function

When sending data, you can set the normal sending mode and the list sending mode. The list mode can edit multiple CAN data. The CAN data in the sending list can be sent simultaneously and cyclically, and the sending list can be saved/loaded.

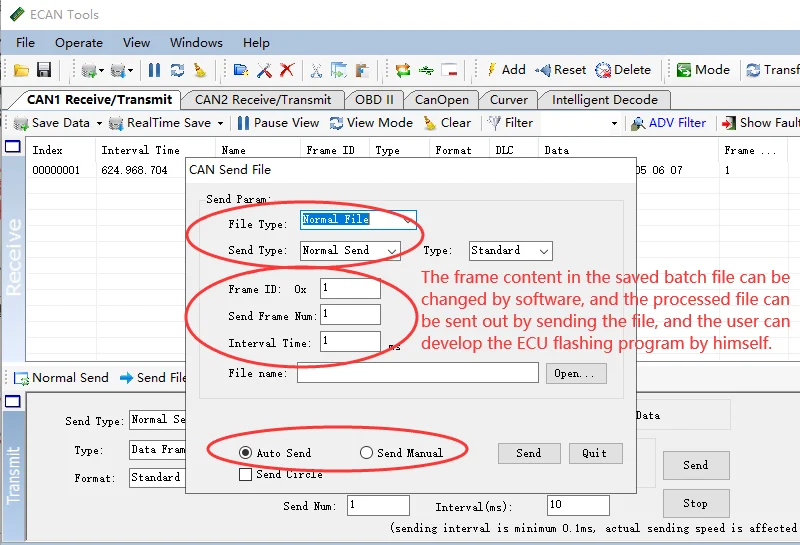

The file sending function can send the batch file (.CAN) back to the CAN bus according to the time sequence information when receiving. The batch file can be edited through the notepad, and the edited file can be sent according to the content actually written by the user.
This function can be used as a signal simulator for automotive electronics users. For example, the car navigation is controlled by the CAN signal to turn on. The user can intercept a piece of data containing the car navigation startup signal without having to find the startup signal from these data. After removing the navigation from the car, resend this piece of data to the navigation to start the navigation without ECU.
